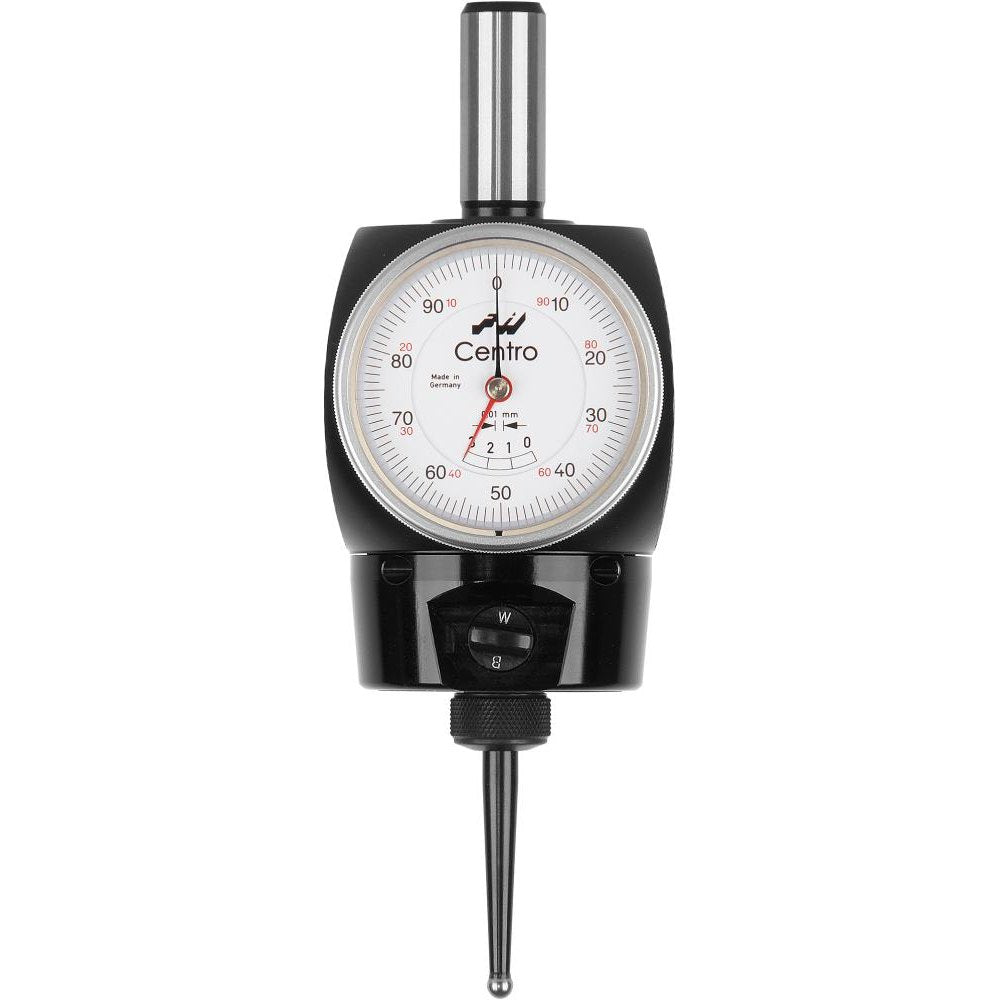

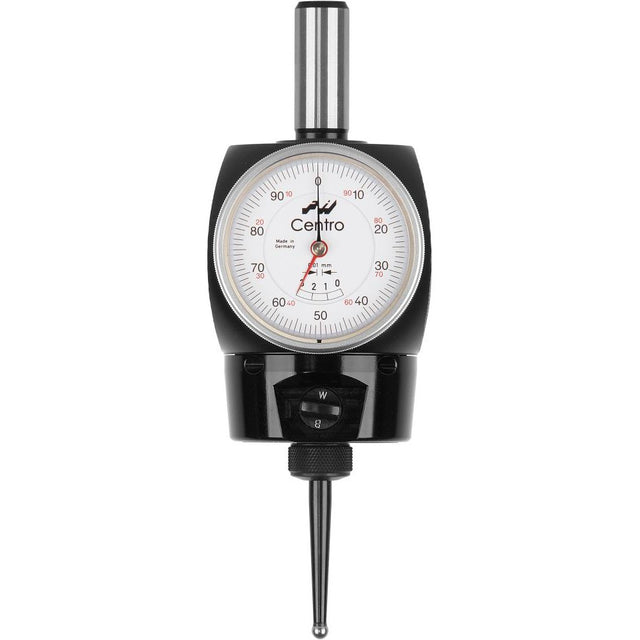

Centro precision probe At low speeds, the spindle is positioned close to the desired axis The probe tip slides along the wall of the respective spindle hole As long as the spindle and the desired axis do not overlap, the probe tip oscillates during rotation and transmits the movement to the clock The clock remains in a fixed position for very good visibility for the user No adjustment of the probe is necessary Housing Ø 64 mm Clock Ø 60 mm Length without clamping shank 140 mm Clamping is carried out with a Ø 16 mm shank The concentricity tolerances of the spindle and shank are equalized For establishing the zero points of the parts Delivery: In a box, including a Ø 5 mm probe rod.

Hole measuring range: 3–125 mm

Spindle measuring range: 0–125 mm

Reading: 0.01 mm

Centering accuracy: 0.003 mm

Max. number of revolutions: 150 rpm

Brand: HAIMER®
