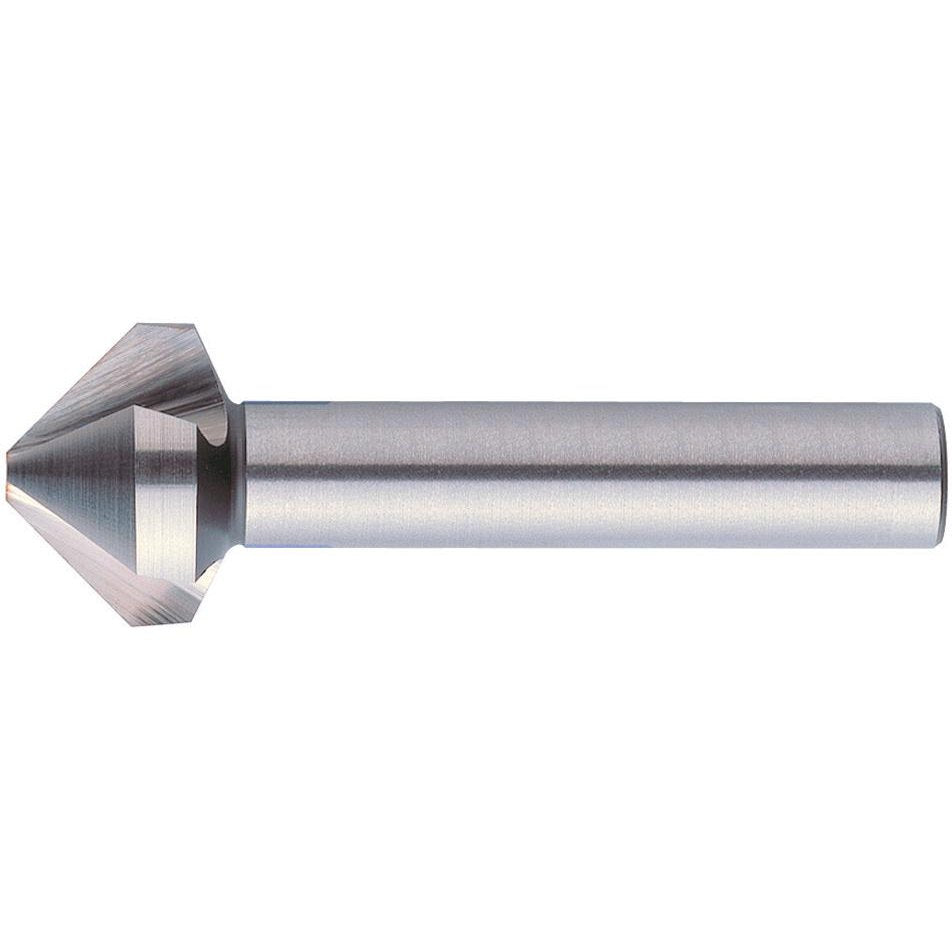

Taper HSS-E PM conical, 6.3mm, 90°, DIN335-C, FORUM

HSS-E PM taper tap, 90°, DIN335-C, FORUM DIN 335-C HSS-E PM 3 cutting edges 90° point angle Axial and radial final grinding Cylindrical shank Lubrication is mandatory Especially for countersunk head screws according to ISO 2009, 2010, 7046, 7047 (DIN 963, 964,965, 966) and DIN 7991

Nominal diameter: 6.3 mm

Minimum Ø: 1.5 mm

Total length: 45 mm

Shank diameter: 5 mm

Steel <850 N: recommended

Steel <1000 N: recommended

Steel <1400 N: occasionally

STAINLESS STEEL: recommended

Alu, non-metals, non-alloys: recommended

Copper, brass, bronze: occasional

Emulsion: recommended

Air: occasionally

Brand: FORUM
